200mm Brake Disc and Hub Assembly - suits 25mm Axle

200mm Brake Disc Assembly – 25mm Bore

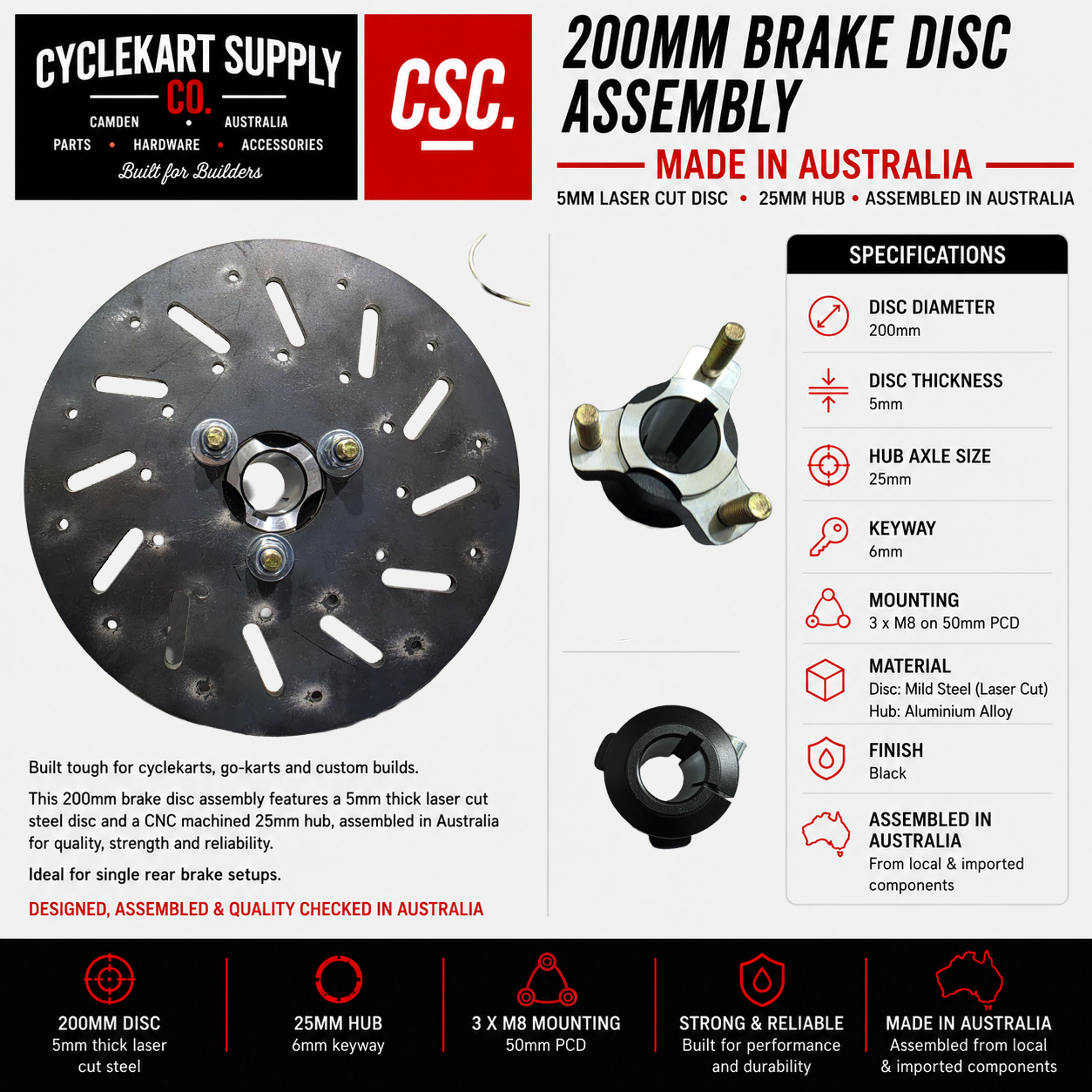

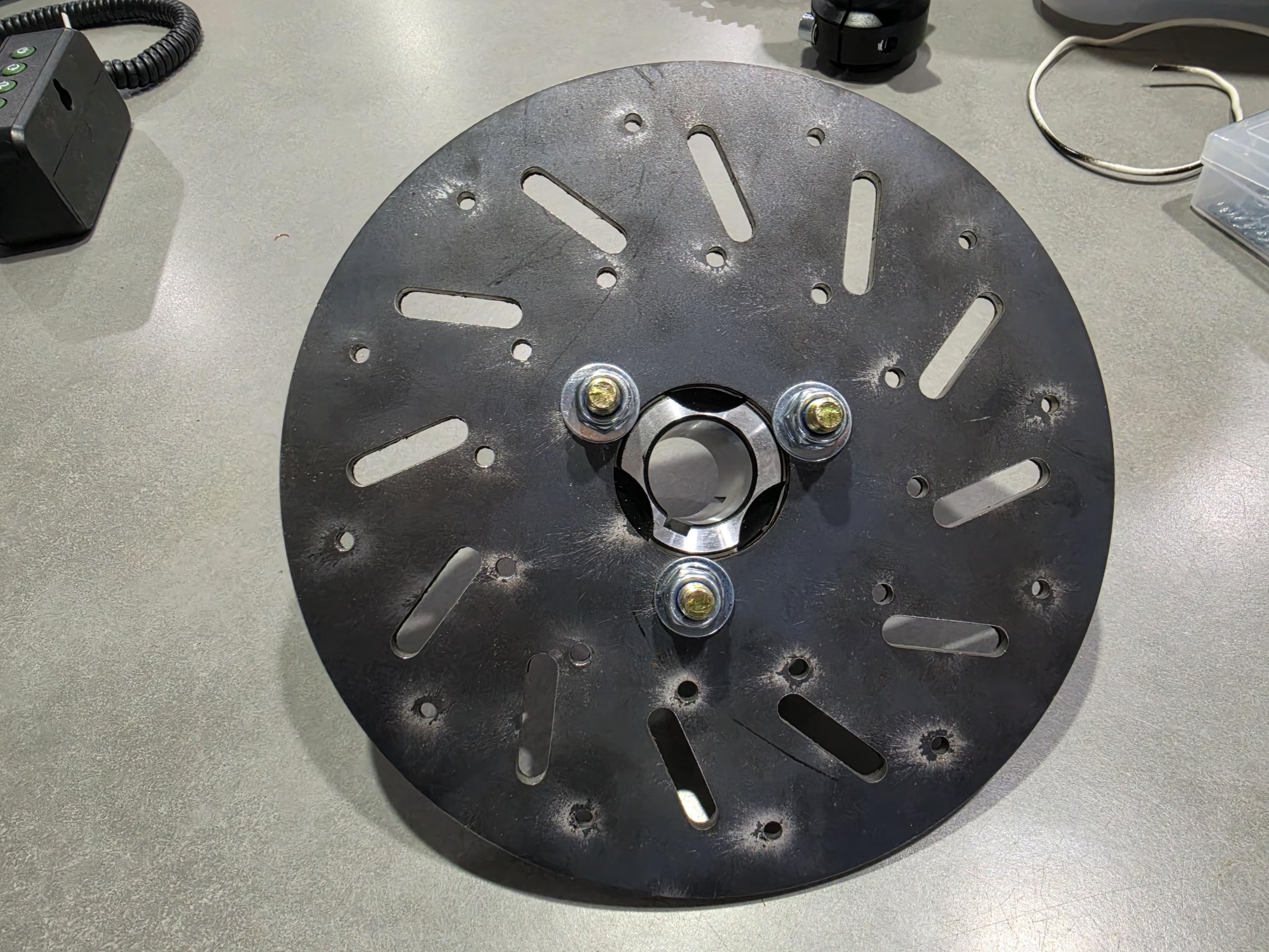

A practical brake disc assembly suited to cyclekarts, go-karts and custom builds. It combines a 200mm laser-cut mild-steel disc with a CNC-machined aluminium hub, supplied assembled and ready to install on a compatible 25mm axle.

The 5mm-thick disc provides a solid braking surface, while the hub uses a 6mm keyway to locate securely on the axle. The disc mounts to the hub with three M8 fasteners on a 50mm pitch circle diameter.

Suitable for single rear brake arrangements where the listed dimensions match your axle and brake system.

Specifications

• Disc diameter: 200mm
• Disc thickness: 5mm
• Axle bore: 25mm
• Keyway: 6mm
• Disc mounting: 3 × M8 holes on 50mm PCD
• Disc material: Laser-cut mild steel
• Hub material: Aluminium alloy
• Finish: Black
• Assembly: Assembled and quality checked in Australia
• Components: Local and imported

Please confirm the axle diameter, keyway size, mounting pattern and brake caliper compatibility before ordering.
