#35 61T Sprocket and Hub Combo

#35 61T Sprocket and Hub Combo

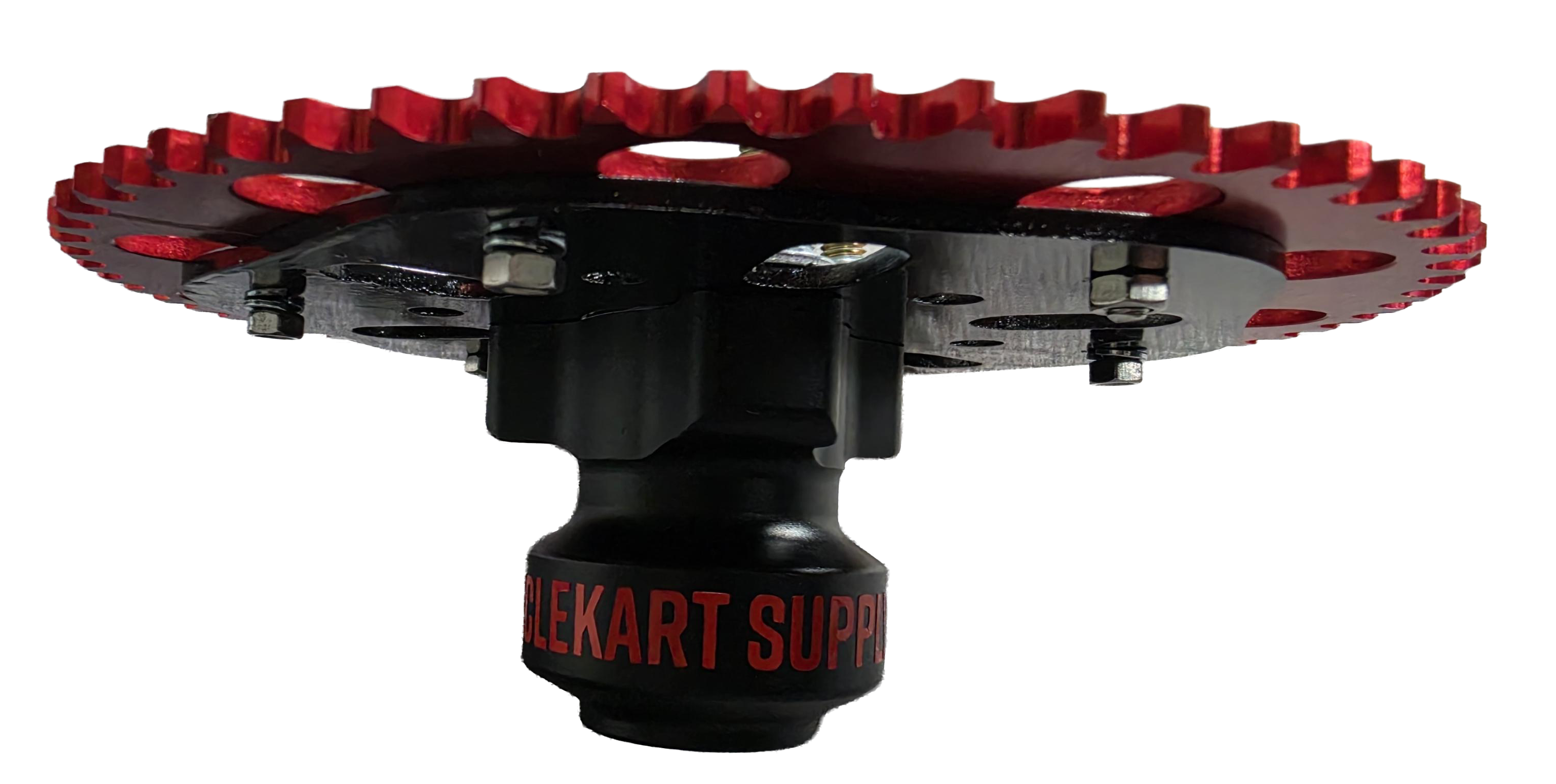

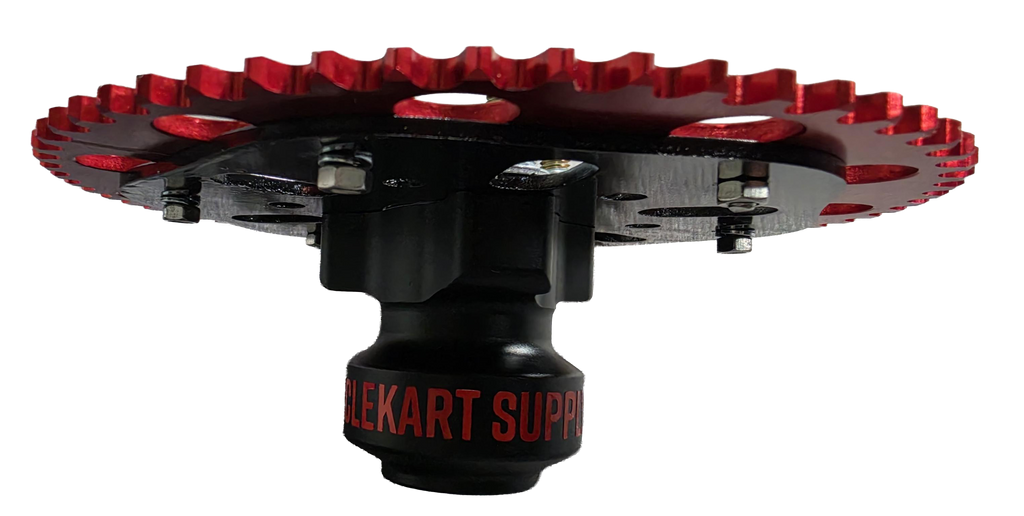

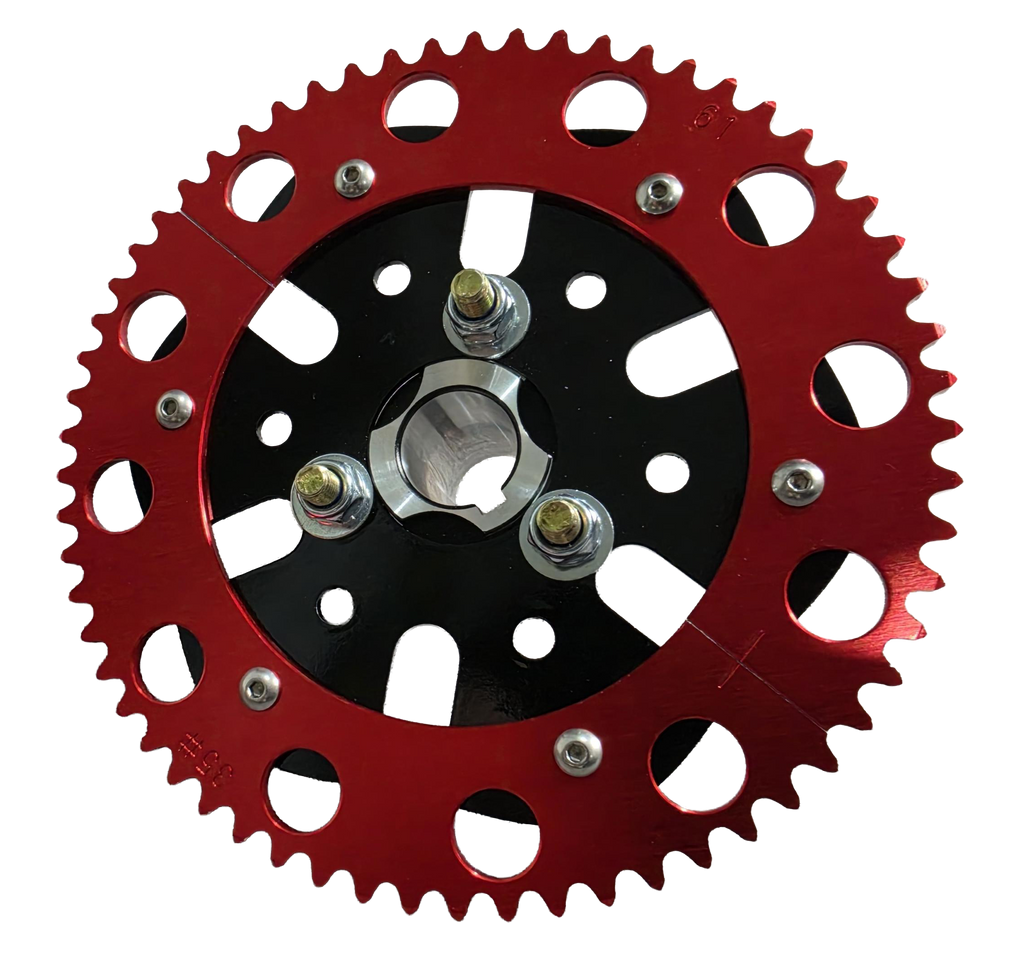

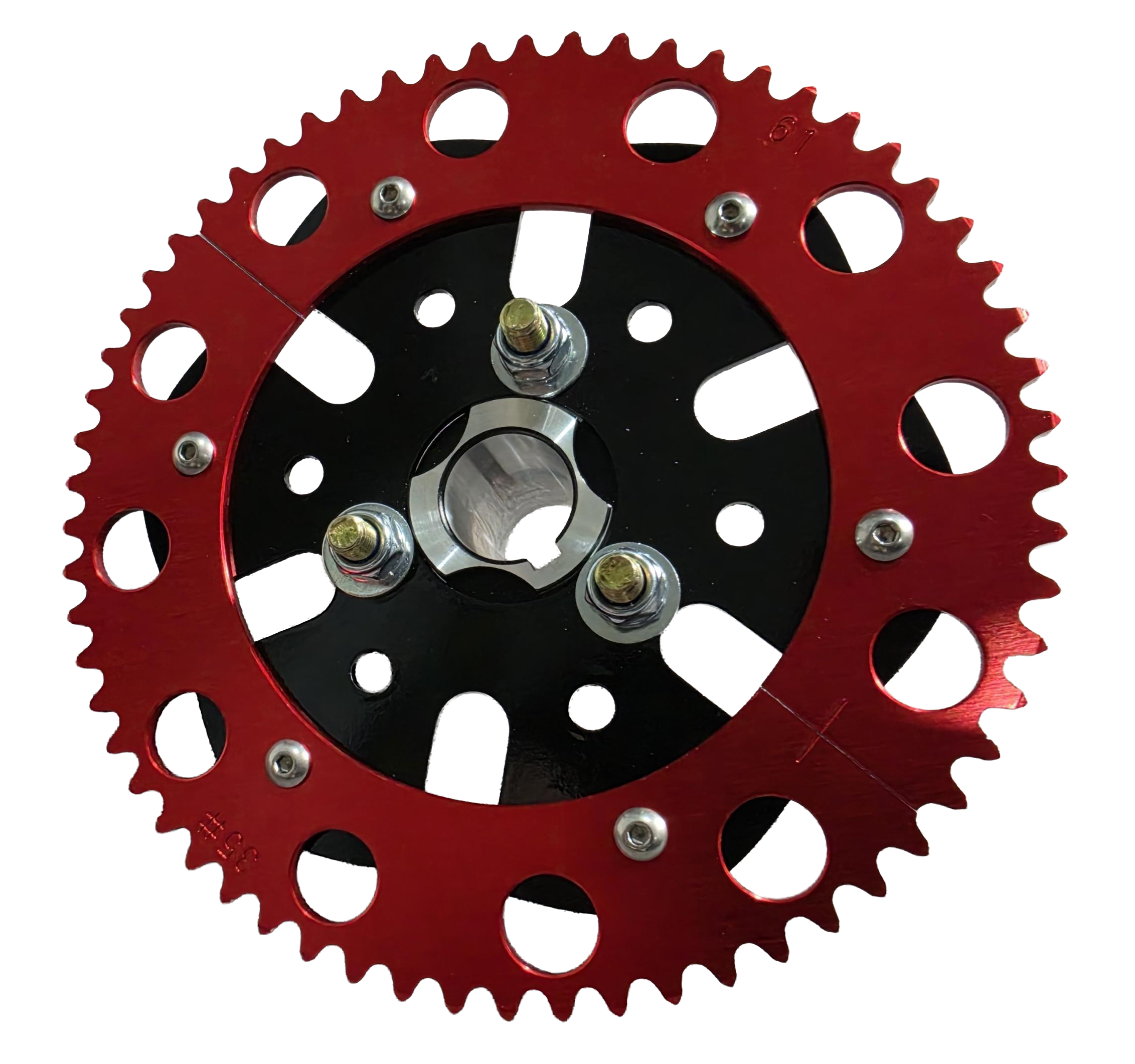

This sprocket and hub combo is a complete rear drive kit for cyclekart builds using a 25mm axle and #35 chain. The kit includes a 25mm axle hub, sprocket carrier and 61 tooth sprocket, supplied as a matched assembly for straightforward rear axle installation.

The hub suits a 25mm axle with a 6mm keyway. The sprocket mounts to the carrier using 3 x M8 fasteners on a 50mm PCD. Components are CNC machined from 6061 aluminium alloy and finished in black and red anodising for corrosion resistance and a clean appearance.

Suitable for builders looking for a compact rear drive package for a #35 chain setup.

Specifications

• Chain size: #35
• Sprocket: 61 tooth
• Axle size: 25mm
• Keyway: 6mm
• Mounting: 3 x M8
• PCD: 50mm
• Material: 6061 aluminium alloy
• Finish: Black and red anodised
• Supplied as: 1 kit — hub, carrier and sprocket fully assembled and ready to go
