Kit and Kaboodle Cyclekart Package

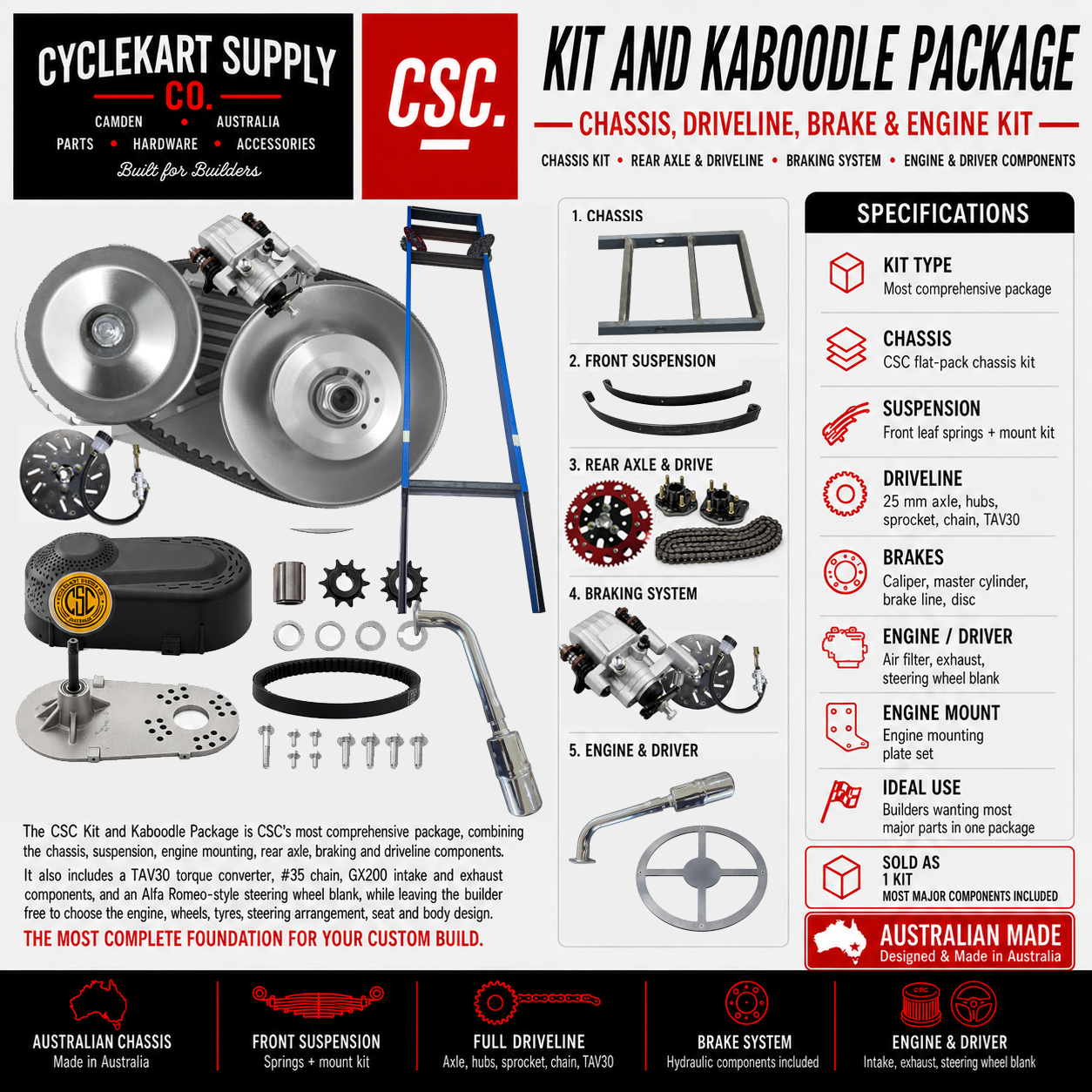

 CSC Kit and Kaboodle Cyclekart Package

The CSC Kit and Kaboodle is CSC's most comprehensive package, combining the chassis, suspension, engine mounting, rear axle, braking and driveline components.

It also includes a TAV30 torque converter, #35 chain, GX200 intake and exhaust components, and an Alfa Romeo-style steering wheel blank, while leaving the builder free to choose the engine, wheels, tyres, steering arrangement, seat and body design.

Package Includes

Chassis, Suspension and Engine Mounting

·  CSC flat-pack cyclekart chassis kit

·  Front leaf springs

·  Leaf spring mounting kit

·  Engine mounting plate set

Rear Axle and Driveline

·  25 mm rear axle

·  Pair of UCFL205-16 25 mm flange-mount bearings

·  Pair of 25 mm shaft collars

·  Pair of 25 mm pit bike wheel hubs with adapter plates and spacers

·  #35 61-tooth sprocket and 25 mm hub combination

·  #35 roller chain - 140 links

·  TAV30 torque converter kit

Braking Components

·  High-performance hydraulic brake caliper with handbrake

·  Hydraulic brake master cylinder

·  1600 mm braided brake line

·  200 mm brake disc assembly with 25 mm hub

Engine and Driver Components

·  GX200 air filter kit

·  GX200 exhaust and muffler combination

·  Alfa Romeo-style steering wheel blank

Suitable For

·  First-time builders wanting the most comprehensive CSC package

·  Builders wanting compatible chassis, axle, braking and driveline components

·  Projects using a GX200 or compatible clone engine

Important Information

The Kit and Kaboodle is not a complete or assembled cyclekart. Welding, fabrication and final assembly are required.

Builders will still need an engine, wheels, tyres, steering column and linkages, controls and pedals, seat, bodywork, fuel system, fasteners and other project-specific components. The brake caliper mounting bracket is not included and must be sourced or fabricated separately.

Engine compatibility should be checked before installing the supplied intake, exhaust and torque converter components.

Pre-order: This product is supplied on a pre-order basis. Please allow approximately two weeks from the order date before dispatch.

Shipping: $75 to East Coast and South Australian metropolitan areas only. Customers in regional, remote or other areas should contact CSC for a freight quote before ordering.
