Brake Master Cylinder
Brake Master Cylinder
SHIPS JUNE 27th

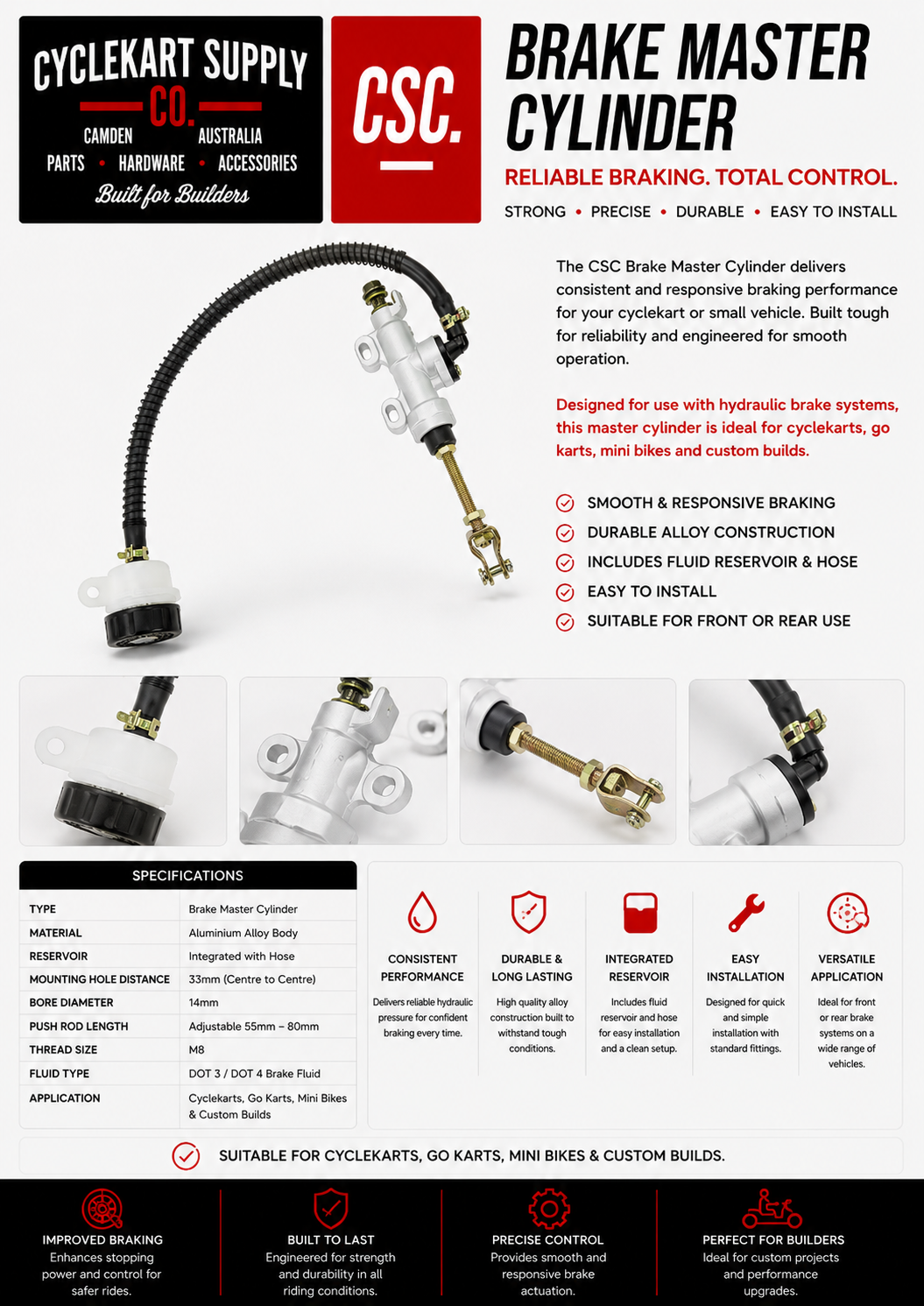

CSC Brake Master Cylinder
Reliable braking starts with a quality master cylinder. The CSC Brake Master Cylinder is a compact hydraulic brake master cylinder designed specifically for cyclekarts and other lightweight vehicles, delivering smooth, consistent brake pressure and excellent pedal feel.
Supplied complete with a remote fluid reservoir, connecting hose and adjustable push rod, this master cylinder provides everything needed for a straightforward installation. The adjustable push rod allows pedal travel and engagement point to be fine-tuned, helping builders achieve the brake feel they want.
Constructed from lightweight aluminium alloy and designed for compatibility with DOT 3 and DOT 4 brake fluids, this master cylinder is an ideal choice for new builds, brake system upgrades and replacement applications.
Features
- Hydraulic brake master cylinder
- Remote fluid reservoir included
- Supplied with reservoir hose and fittings
- Adjustable push rod for pedal setup and tuning
- Smooth and responsive brake operation
- Lightweight aluminium alloy construction
- Suitable for hydraulic disc brake systems
- Compatible with DOT 3 and DOT 4 brake fluid
- Compact design for easy installation
Why Choose This Master Cylinder?
A hydraulic brake system is only as good as the master cylinder driving it. This unit delivers reliable hydraulic pressure to your brake caliper, providing predictable braking performance and excellent control.
The included remote reservoir simplifies installation and makes fluid level inspection and maintenance easy, while the adjustable push rod allows the braking system to be tailored to suit different pedal arrangements and chassis designs.
Specifications
| Specification | Value |
|---|---|
| Type | Hydraulic Brake Master Cylinder |
| Material | Aluminium Alloy |
| Mounting Hole Centres | 33mm |
| Bore Diameter | 14mm |
| Push Rod Length | Adjustable 55–80mm |
| Push Rod Thread | M8 |
| Fluid Type | DOT 3 / DOT 4 |
| Reservoir | Remote Reservoir Included |
Ideal For
- Cyclekarts
- Custom chassis builds
- Hydraulic disc brake systems
- Brake system upgrades
- Replacement master cylinders
Recommended Pairing
For a complete braking solution, pair this master cylinder with the CSC High Performance Hydraulic Brake Caliper with Integrated Hand Brake and CSC 1600mm Braided Brake Line.
Together they provide everything required for a powerful, reliable hydraulic braking system with an integrated parking brake.
Reliable Braking. Precise Control. Built for Builders.
