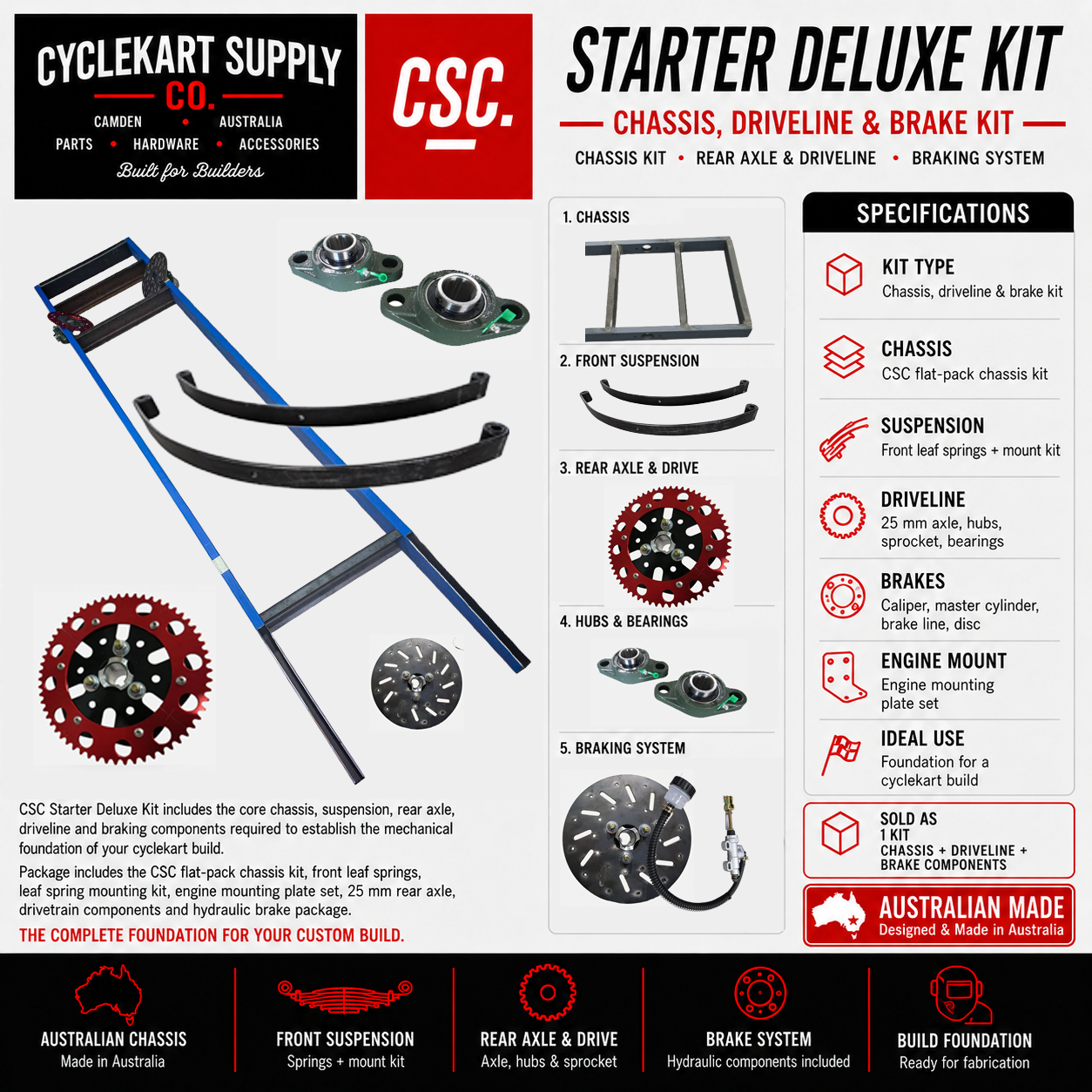

Starter Deluxe Chassis Kit

The CSC Starter Deluxe Cyclekart Kit provides the main chassis, suspension, engine mounting, rear axle, braking and driveline components required to establish the mechanical foundation of a cyclekart.

This package removes much of the work involved in sourcing compatible axle, hub, sprocket and brake components individually while still allowing the builder to select their preferred engine, torque converter, wheels, steering system and body design.

Package Includes

Chassis, Suspension and Engine Mounting

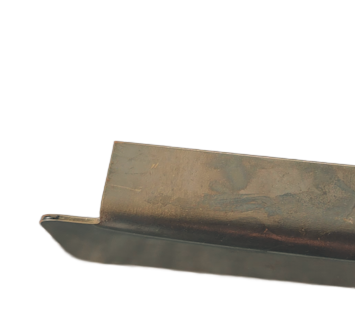

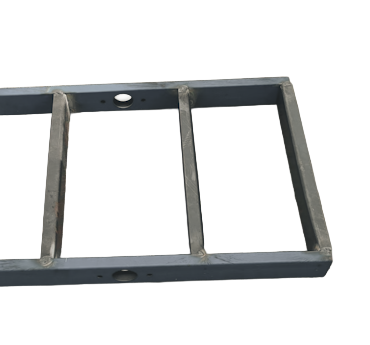

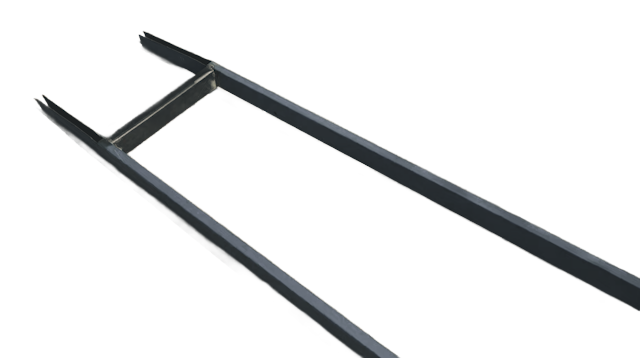

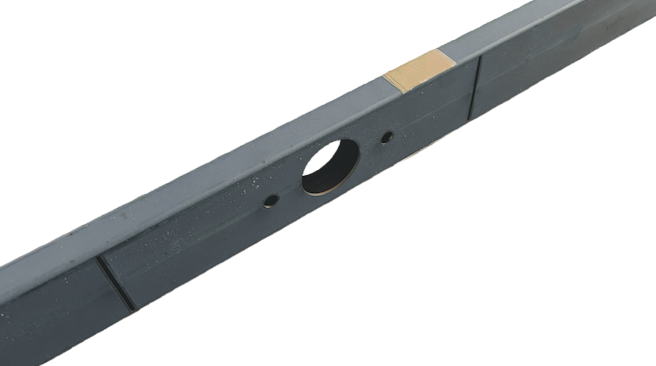

·  CSC flat-pack cyclekart chassis kit

·  Front leaf springs

·  Leaf spring mounting kit

·  Engine mounting plate set

Rear Axle and Driveline

·  25 mm rear axle

·  Pair of UCFL205-16 25 mm flange-mount bearings

·  Pair of 25 mm shaft collars

·  Pair of 25 mm pit bike wheel hubs with adapter plates and spacers

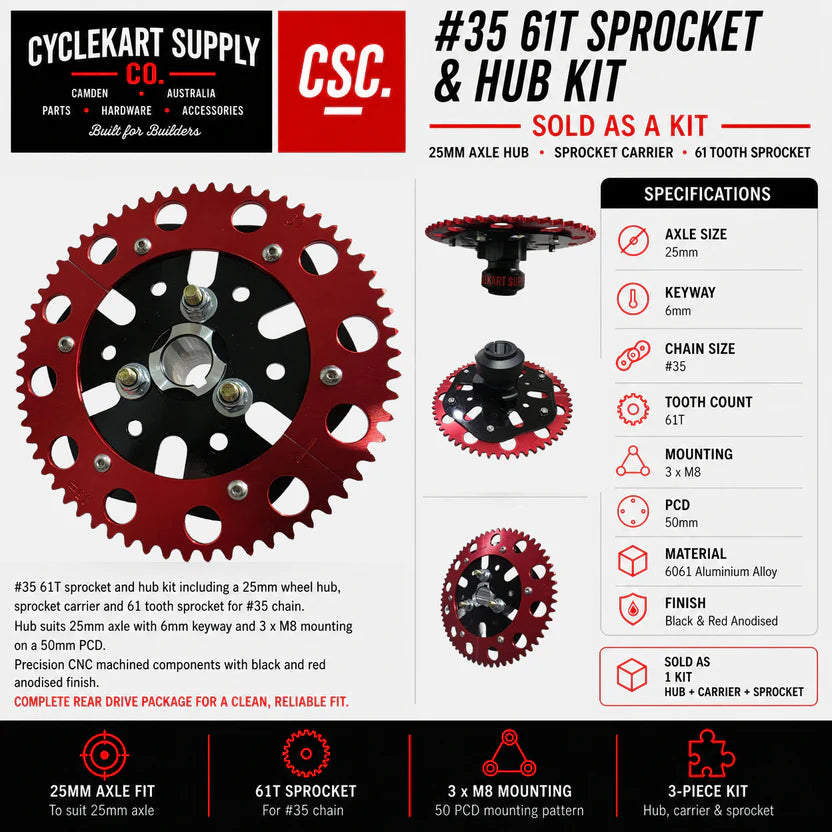

·  #35 61-tooth sprocket and 25 mm hub combination

Braking System

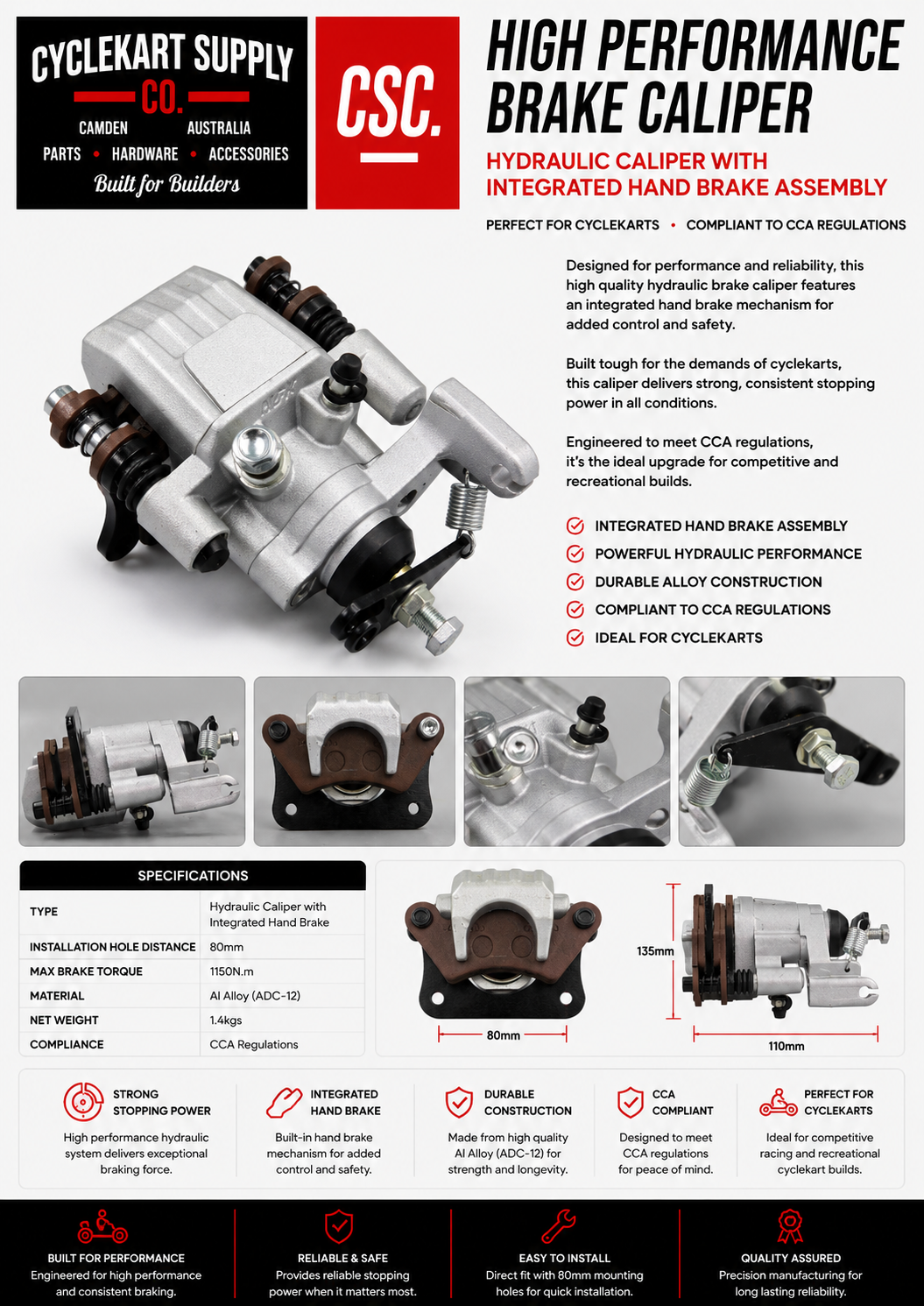

·  High-performance hydraulic brake caliper with handbrake

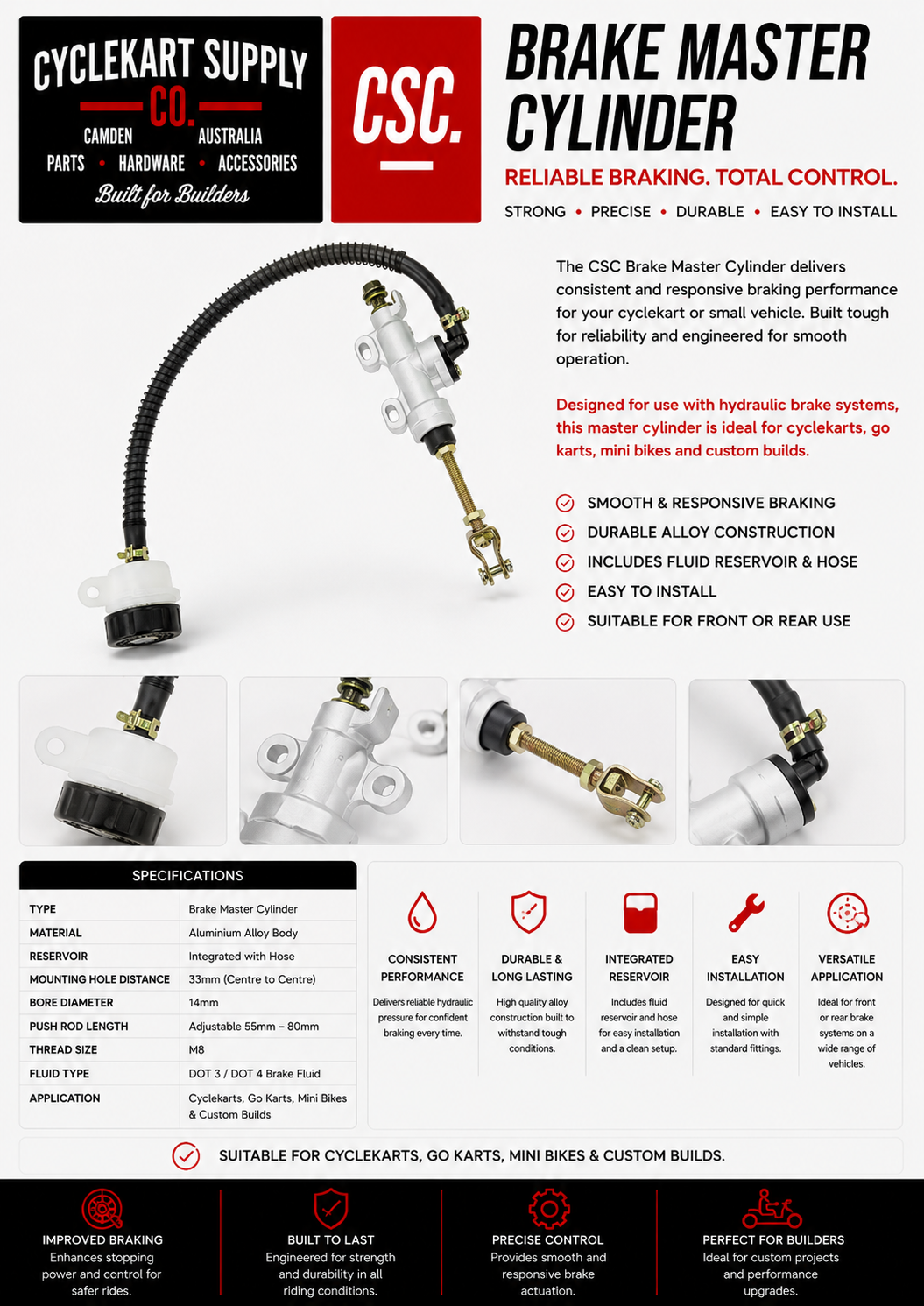

·  Hydraulic brake master cylinder

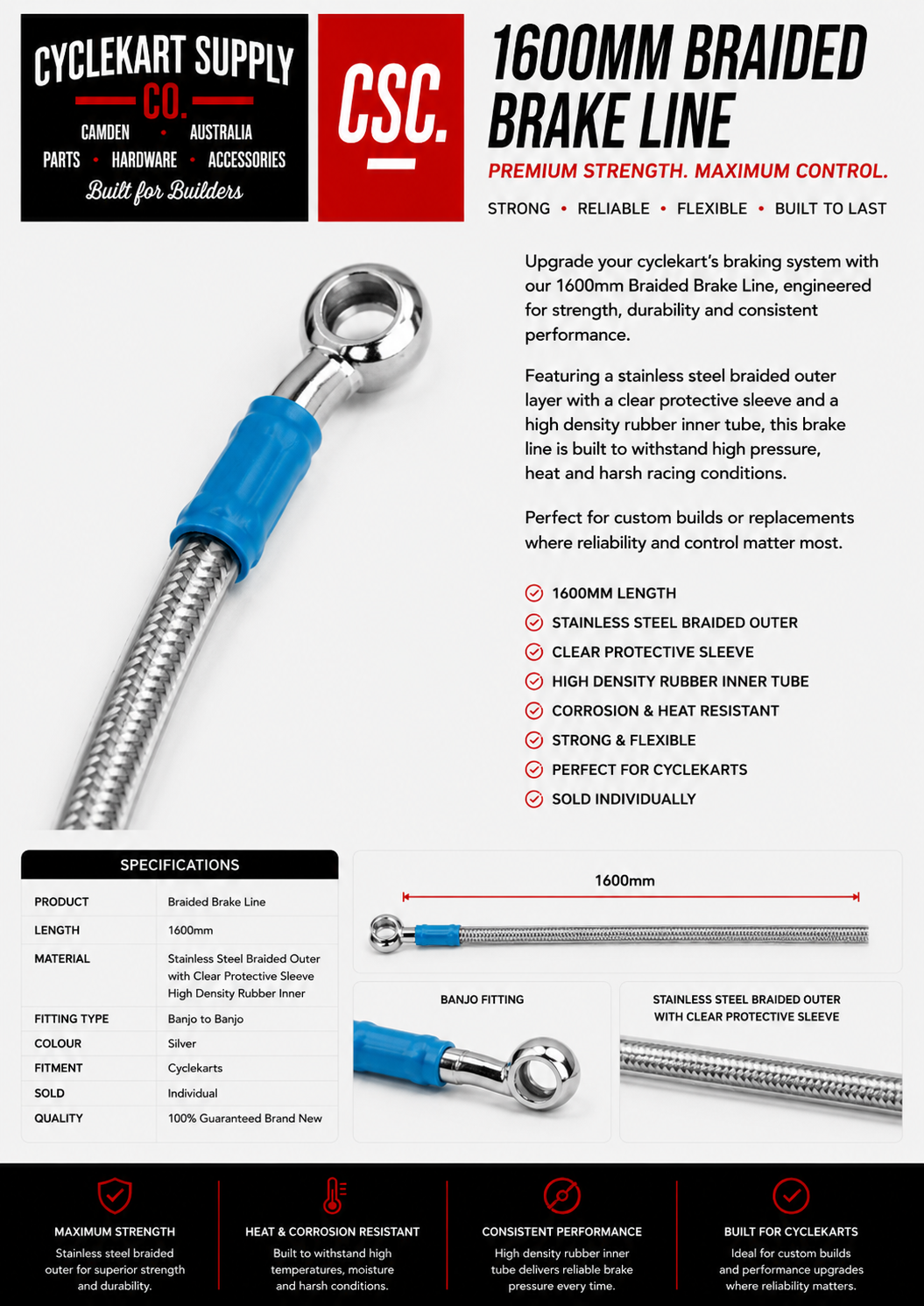

·  1600 mm braided brake line

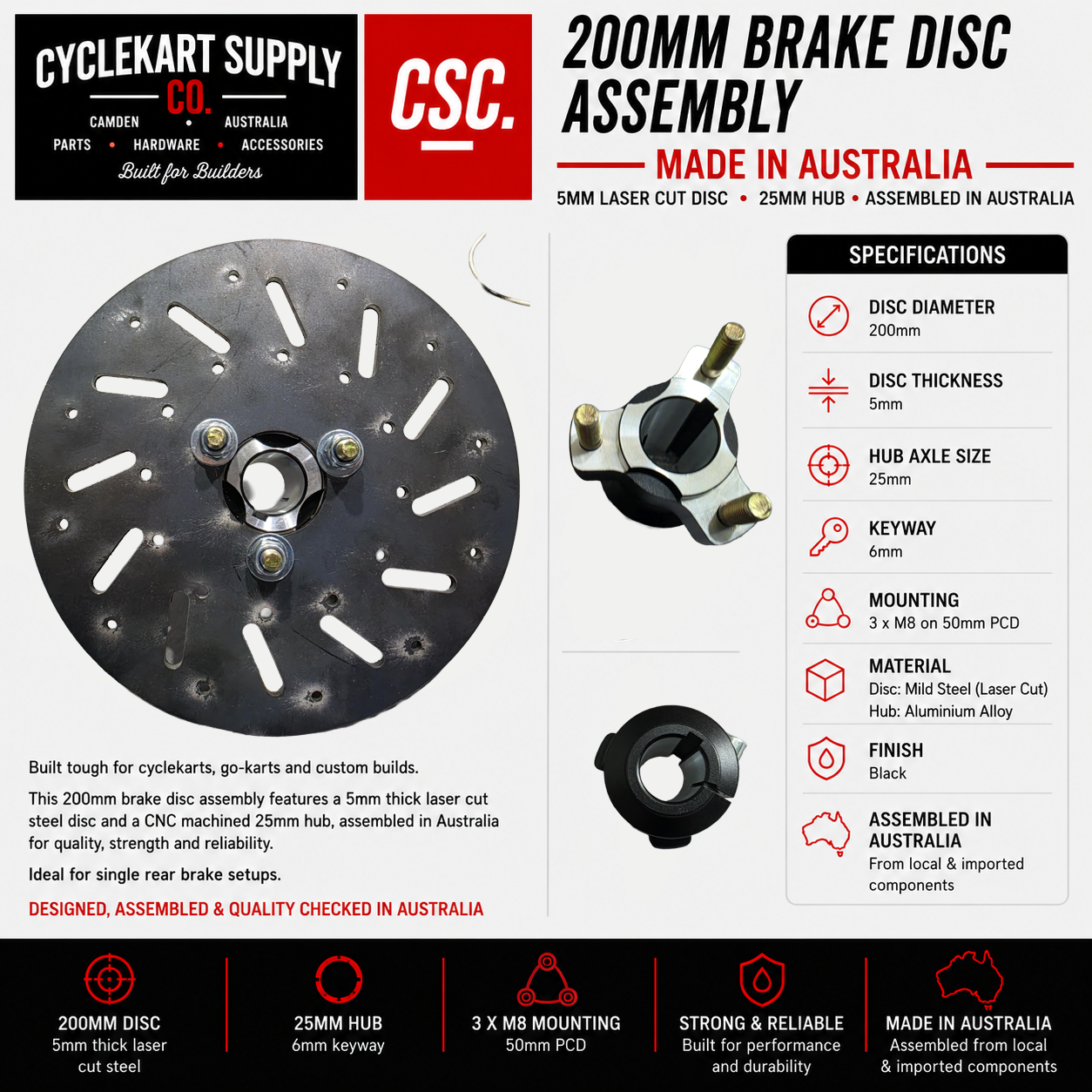

·  200 mm brake disc assembly with 25 mm hub

·  Brake caliper mounting bracket

Suitable For

·  First-time cyclekart builders

·  Builders wanting the main chassis and running-gear components in one package

·  Projects using a 25 mm rear axle and #35 chain

·  Builders who want to select their own engine and torque converter

Important Information

This package requires welding, fabrication and final assembly.

It does not include the chain, engine, torque converter, air filter, exhaust, steering assembly, steering wheel, wheels, tyres, pedals, seat or bodywork.

Pre-order: This product is supplied on a pre-order basis. Please allow approximately two weeks from the order date before dispatch.

Shipping: $75 to East Coast and South Australian metropolitan areas only. Customers in regional, remote or other areas should contact CSC for a freight quote before ordering.
